IKO TR 385230 Bearing

IKO TR 385230 needle bearings

Also known as : TR 385230

  • Inside Diameter: 38 mm
  • Outside Diameter: 52 mm
  • Width: 30 mm
  • Basic dynamic load rating: 0.05 kN
  • Basic static load rating: 0.081 kN

Inquire Now


IKO TR 385230 needle bearing

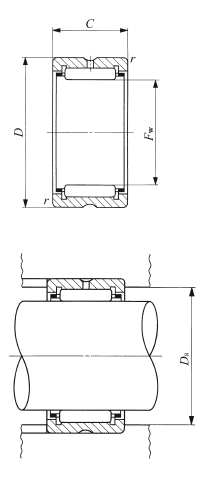

IKO TR 385230 Bearing details

model TR 385230
Fw 38 mm
D 52 mm
C 30 mm
rs min 0.6 mm
Da max 48 mm
C 50 800 N, Basic dynamic load rating
C0 81 100 N, Basic static load rating
Allowable rotational speed 11 000 rpm
Mass 168 g (approx.)

Nodes bearings, IKO needle roller bearings wholesaler, have IKO TR 385230 needle bearings in stock. machined type Needle roller bearings.

IKO TR 385230 bearing cross reference

IKO GTR 385230 bearing
D:38mm * 52mm * 30mm
IKO TAF 384820 bearing
D:38mm * 48mm * 20mm
IKO TAF 384830 bearing
D:38mm * 48mm * 30mm
IKO TAFI385320 bearing
38mm * 53mm * 20mm
IKO TAFI385330 bearing
38mm * 53mm * 30mm
IKO TA 3815Z bearing
38mm * 48mm * 15mm
IKO TA 3820Z bearing
38mm * 48mm * 20mm
IKO TA 3825Z bearing
38mm * 48mm * 25mm
IKO TA 3830Z bearing
38mm * 48mm * 30mm
IKO TA 3845Z bearing
38mm * 48mm * 45mm
IKO TAM 3815 bearing
38mm * 48mm * 15mm
IKO TAM 3820 bearing
38mm * 48mm * 20mm
